Description

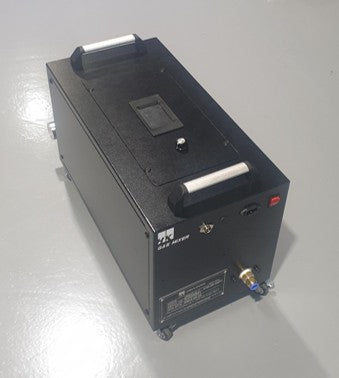

Optimise your laser cutting efficiency with LasMIX, a standalone N2+O2 gas mix module which can work independently or be integrated to the laser machine controller for greater operator usability.
LasMIX can connect to any brand of laser cutting machine to boost productivity to maximum.
High speed production through accurate mix gas
- Simple operation

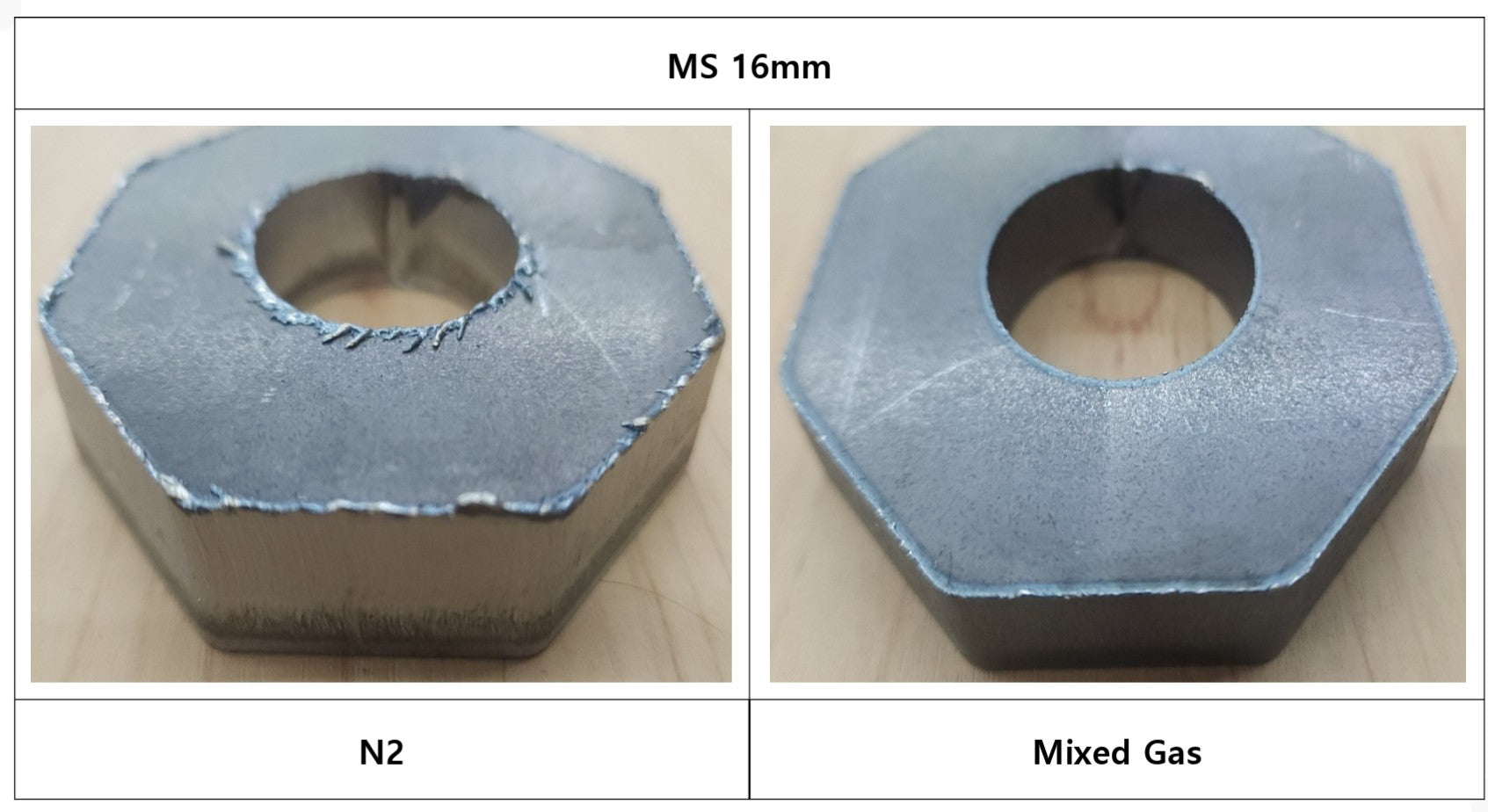

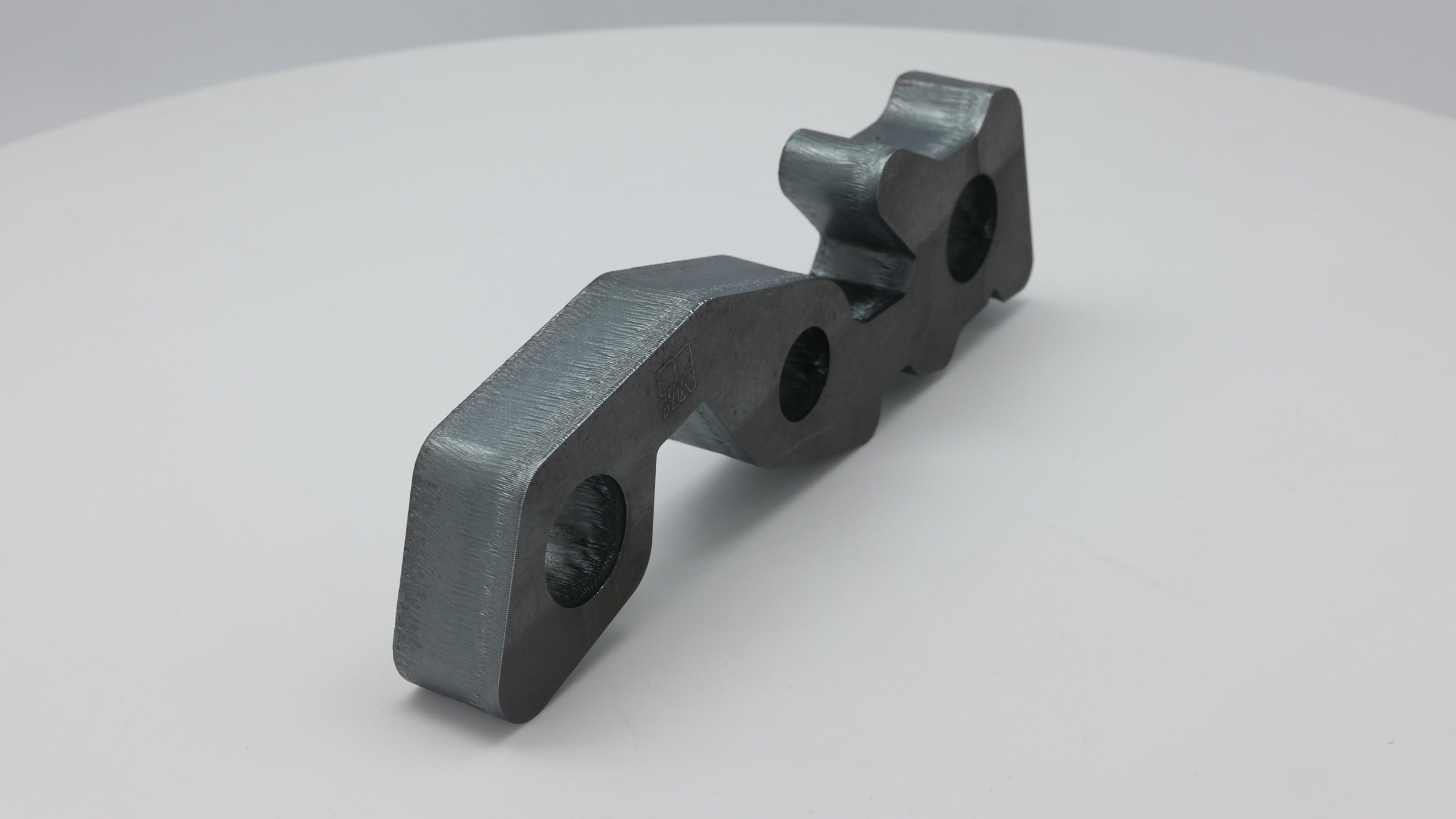

- Increased feed rate and cut edge quality
- Two versions available. 2500LPM for 2D (flat) cutting or 3000LPM for 2D and bevel cutting.
- Digital display with readout for Mix value, flow rates and status.
Specifications
| Model | HMX2570 | HMK3070 |
|
Max mixed flow range |
2500LPM (88.3CFM) | ~3000LPM (106CFM) |
| O2 Mixing range | O2 0.5~3.0% in N2 | O2 0.5~2.7% in N2 |
| Features |
Gas flow measurements |
|
| Mixing precision | < ±0.3% abs | |
| Display |
4.3” Color LCD |
|
| O2 mixing setting |
By local rotational knob or remote analog input |
|
|
Maximum Inlet gas pressure |
20bar for both N2 and O2 O2 pressure should be higher than N2 by 1~1.5bar |
|
|
Pressure loss |
<1bar at max. flow |
|
|
Recommended Inlet gas pressure
|
N2 15bar / O2 17bar ~ N2 17bar / O2 19bar |
|
|
Operating temperature |
5 ~ 45°C |
|
|

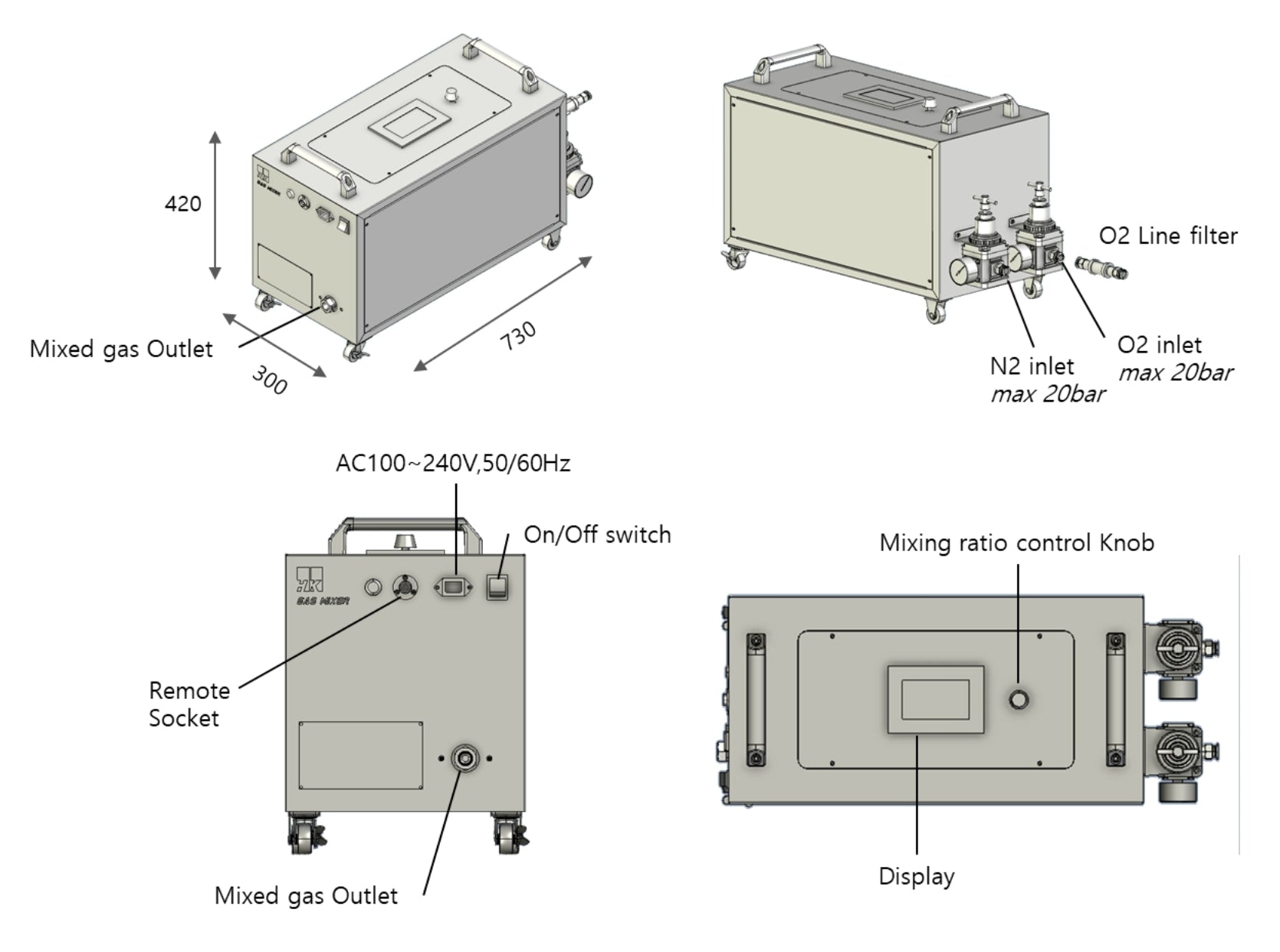

Dimension |
WxDxH : 730 x 300 x 420 |
|
|
Gas connection |
1/2 PT (default, Customization is possible) |
|
|
Weight |
25KG |
|
|
Power |
Standard: AC 100~240V 50/60Hz, 5A max. Optional: DC 24V |
|
|
Warranty |
1 year |
